Product Overview
The Vacuum Assist Mobile Drainage Pump Truck is engineered to perfectly realize the concept of a truly mobile pumping station. Built with a strong emphasis on high mobility and rapid reaction times, it utilizes a powerful vacuum-assisted priming system to start pumping operations instantly. This equipment significantly enhances the comprehensive guarantee performance of urban disaster relief by adapting to complex emergency scenarios with ease.Key Features
- Rapid Deployment & Retraction: Highly flexible movement allows the unit to be set up and withdrawn from the job site in record time, critical for emergency response.
- Vacuum Assisted System: Ensures fast self-priming without the need for manual water filling, accelerating the drainage process.
- Low Labor Intensity: Designed to require minimal operational personnel, effectively reducing the physical strain on rescue teams.
- Strong Adaptability: The robust trailer chassis and heavy-duty components perform reliably across various harsh and unpredictable environments.

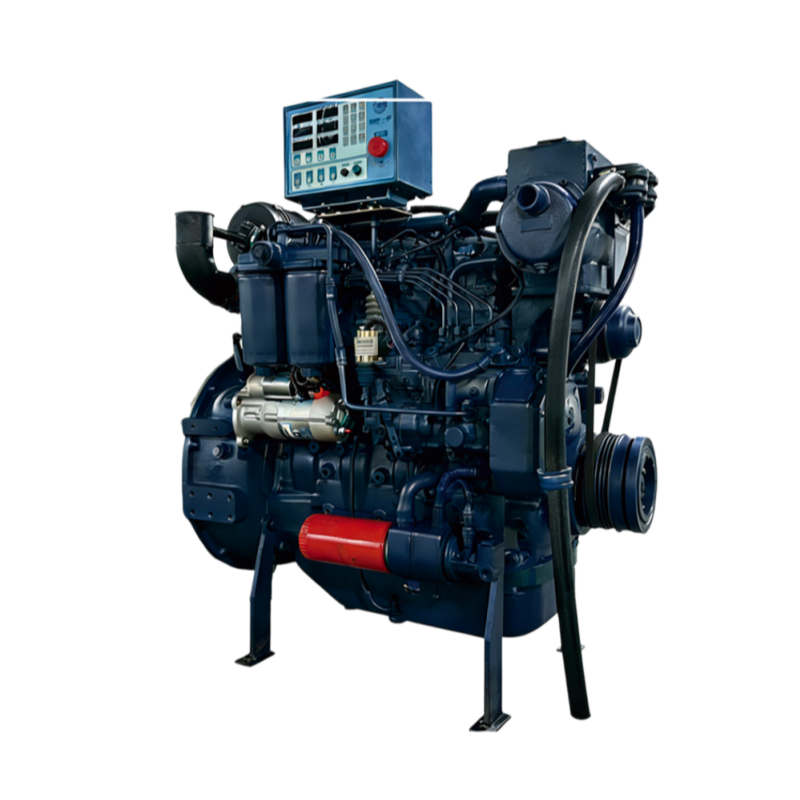

- High-Volume Extraction: Driven by a powerful diesel engine, it delivers massive flow rates up to 3000 m³/h to clear severe water accumulations swiftly.
Main Applications
- Urban flood response and disaster relief
- Emergency municipal waterlogging drainage
- Rapid dewatering for infrastructure construction sites
- River and reservoir emergency water diversion
- Industrial and mining site fluid management
Technical Specifications
| Model | Flow Rate (m³/h) | Head (m) | Diameter (mm) | Pump Speed (rpm) | Diesel Engine Power (kW) |
|---|---|---|---|---|---|
| M6 | 400 | 25 | 150 | 1450 | 30 |
| M8 | 500 | 25 | 200 | 1450 | 38 |
| M10 | 800 | 20 | 250 | 1450 | 80 |
| M12 | 1200 | 15 | 300 | 1450 | 110 |
| M14 | 1500 | 15 | 350 | 1450 | 132 |
| M16 | 2000 | 15 | 400 | 1450 | 165 |
| M16 (High Flow) | 3000 | 15 | 400 | 1450 | 231 |
